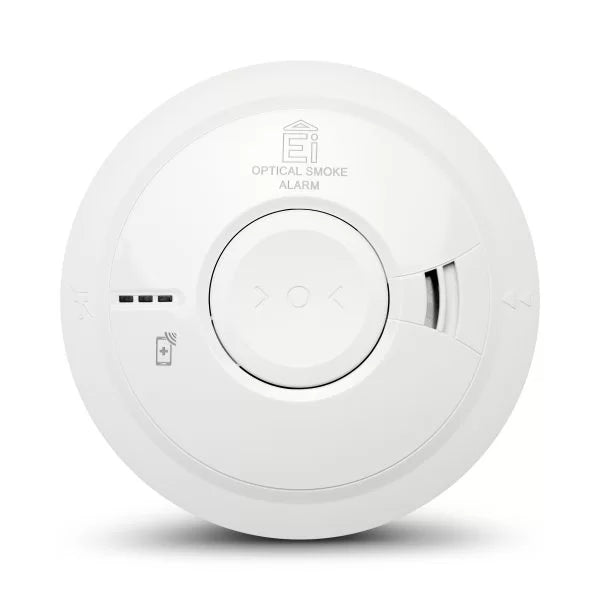

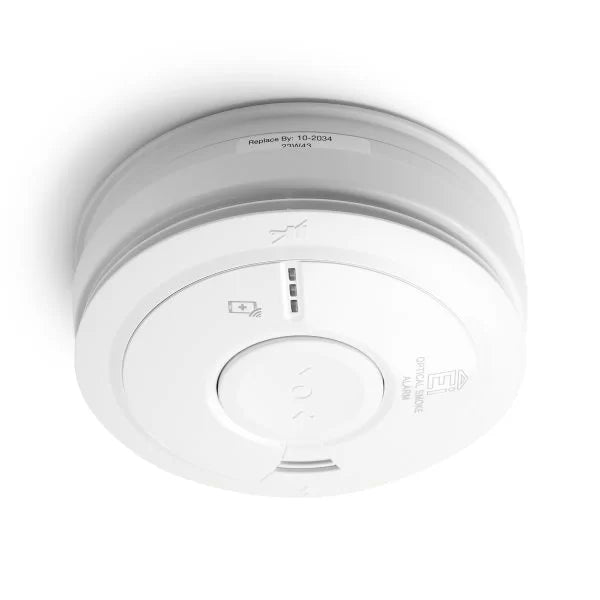

Ei3016 - Optical Smoke Alarm

The Ei3016 Optical Smoke Alarm contains our tried and tested high-performance Optical smoke sensor, which is best for detecting slow, smoldering fires in the living room, bedroom, hallway, landing, or dining room. Our smoke chamber design, integrated insect screen, and unique automatic dust compensation, dramatically reduce the risk of false alarms.

• Contains our high-performance Optical sensor
• Mains powered with a 10-year rechargeable lithium cell back-up
• Add an Ei3000MRF module for wireless interconnection and data extraction
• Built-in AudioLINK+ data extraction technology
• Compatible with other Aico mains powered devices
• Built-in dust compensation with unique self monitoring mechanism
• Grade D1 and compliant with Scottish legislation
• Supplied with an easi-fit base
• 10 Year Guarantee

Technical Specification

• Sensor Type: Optical
• Supply Voltage: 230V AC, 50Hz
• Power Consumption: 0.25W (standby)
• Battery Back-up: Rechargeable lithium cells
• Sound Level: 85dB(A) at 3m
• Button Test: Checks sensor, electronics and sounder
• Silence Function: Silences alarm for 10 minutes
• Silence Function: Silences fault beeps for 12 hours
• AudioLINK+: Enabled
• SmartLINK: Compatible via the Ei3000MRF Module
• Indicator LEDs: Green – power. Red – alarm/ silence mode/ memory. Yellow – fault event
• Memory: Records last alarm event
• Fixing: easi-fit base (supplied)
• Operating Temperature: -10°C to 40°C
• Humidity Range: 15% to 95% relative humidity
• Plastic Material: UL 94 V0 flame retardant

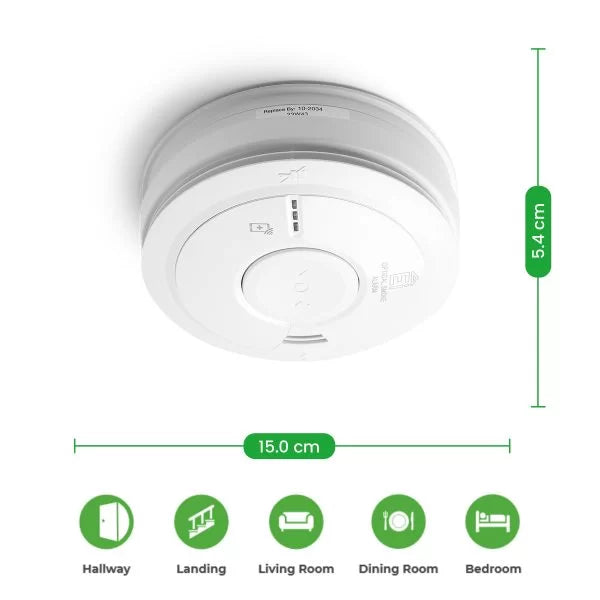

• Dimensions – Product: 150mm x 63mm
• Dimensions – Boxed: 155mm x 155mm x 65mm
• Weight: 336g (product only), 383g (boxed)
• Guarantee: 10 years
