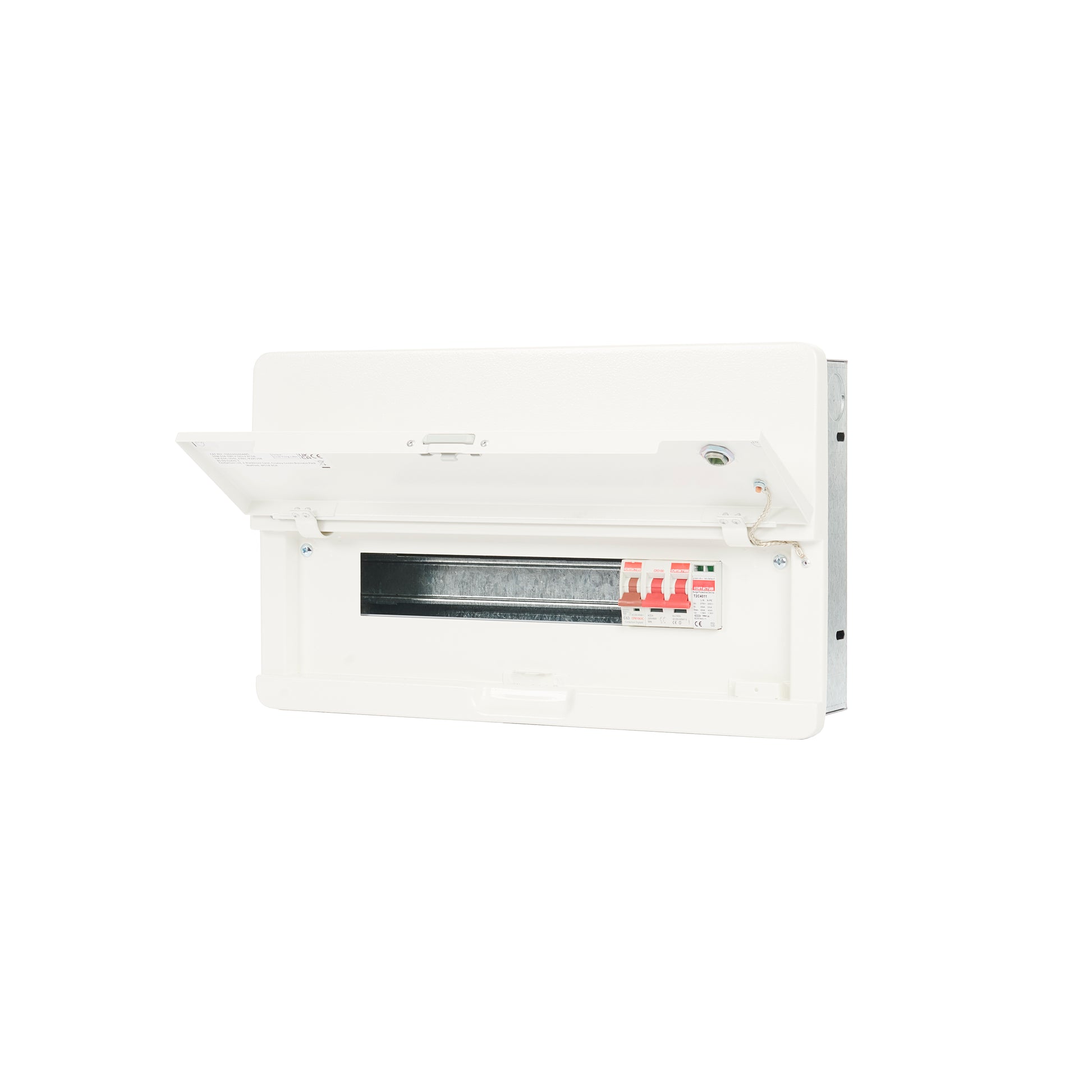

FDD121SPMS - 12Way 100A Flush Mounted Consumer Unit ISO Incomer + SPD

Technical

ABC indicator: C
Colour: White
Security features: optional security lock available
Associated standards: BS EN 61439-3
Rated voltage: 220-250V
Rated current: 100A
Frequency: 50-60Hz
Wiring system: 2 pole
Ambient operating temperature:
-5 to 40°C (24hour average not exceeding 25°C)
Degree of protection: IP4X
Width in number of modular spacings: 16
Nature of supply: AC
DIN-rail: yes
Extension possible: No
Type of cover: steel
Type of door: steel
Material housing: steel
Plate thickness cabinet: 1.2
Plate thickness door/cover: 1.2
Mounting method: Flush
Number of outgoing ways: 12
